Radius Bar & Magnet Pivot
TJ6094 Radius Bar & Magnetic Pivot is included with each Gas Guide Kit. This pack is also available separately. The TJ6086 Magnetic Pivot suits use with any Tanjant Circle Guide by fitting directly to the unique twin-bar frame. Operators may combine this with the TJ6051 Radius Bar for larger diameters. This combination can also be used with the Tanjant Roller Guide, with some limitation.

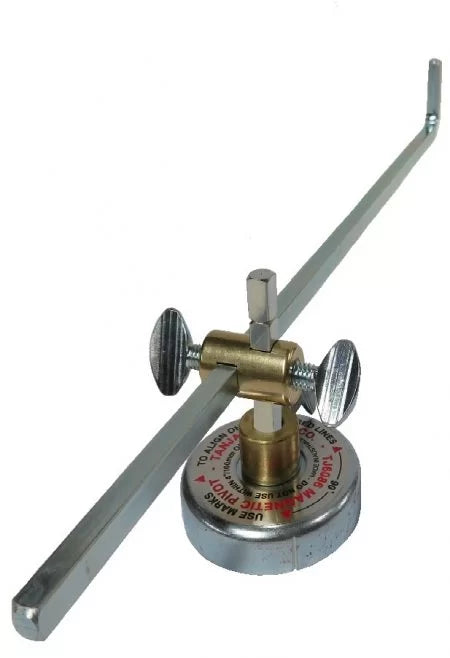

The combination pack (TJ6094) comprises a 350mm (14”) radius bar, straight pin, link nut, fasteners and magnet case assembly. The base cup has four grooves at 90 degree intervals around the outside to enable location on squared lines. This fixes the centre (USA-center) without using a punch mark. See more detail on this with the “How to Use” button and the Picture Gallery
This product should not be used for gas cutting circles less than 150mm (6″) as heat damage to resin casting and magnet may result. Radius Bars may be joined with Link Nut to create longer lengths for large diameter circle cutting
